Electrocardiograph 12 Lead 3 Channel ECG Machine for Hospital Portable ECG Machine Digital Elektrokardiograph 3 Channel 12 Lead USB ECG Machine EKG Monitor
Function - Portable ECG Machine Digital Elektrokardiograph 3 Channel 12 Lead USB ECG Machine EKG Monitor ZQ-1203G is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform i......
Send Inquiry
Product Description
Function - Portable ECG Machine Digital Elektrokardiograph 3 Channel 12 Lead USB ECG Machine EKG Monitor

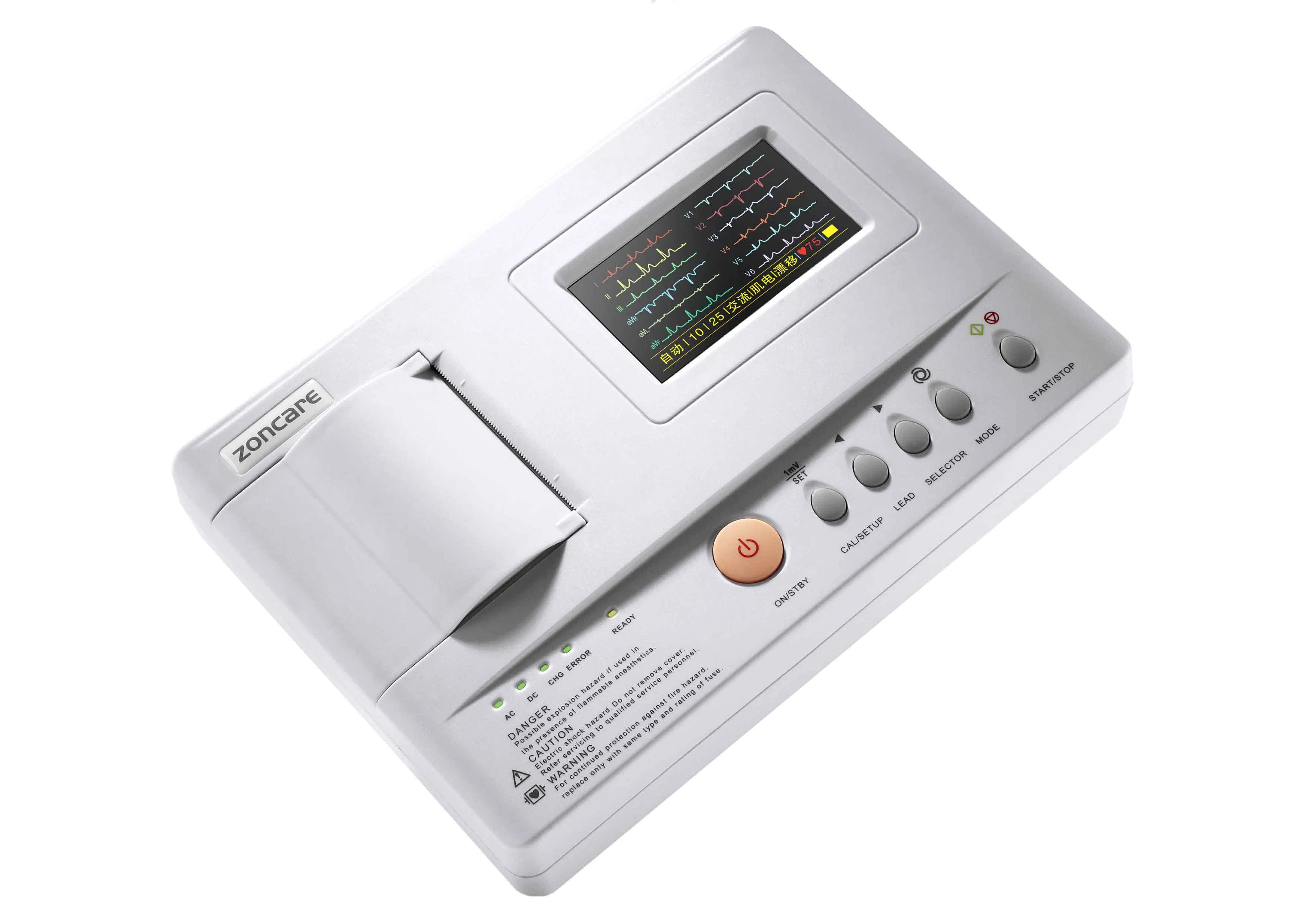

ZQ-1203G is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for "Lead off" and "Lack of paper", multi-language interface, AC/DC, selecting rhythm lead, printing the trend chart and histogram of P-R interval, case database management.
Feature - Portable ECG Machine Digital Elektrokardiograph 3 Channel 12 Lead USB ECG Machine EKG Monitor
* 4.3 inch color LED screen
* Manual/Auto pringting: ICH, ICH+1R, 60 seconds arrhythrnia analysis of waveform
* 200ECG data storage.SD card supported
* Automactic measurement and analysis.
* Alam of electrodes breaking off, Human diagram indicated the unconnected lead
* V1, V3, V5 chest lead examination mode, fit for massive physical examination.
* Built-in rechargebale Lithium battery, AC/DC power conversion.
Specification- High Quality Animal electrocardiogram veterinary single channel ECG machine/ECG Machine for Vet Use Price
| Model number | ZQ-1203G |
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 12 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
| CMRR | >80dB >100dB (with filter) |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System | Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec ) |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply | AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimension of Packing | 400mm×280mm×160mm |
| Weight | 2.75kg |
package and shipping
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance
Wuhan Darppon Medical Technology CO., LTD is one of the leading medical equipment manufacturers and distributors in China since 2009.
Dedicating to product development and production by independent teams, DARPPON established Electrosurgical Unit, Patient Monitor, Electrocardiograph and Home Care production lines step by step, and we have passed ISO 1234 and CE certificates for all our products.
Up to now, Darppon specialize in offering more than 100 types of products which including Electrosurgical Unit, Patient Monitor, Electrocardiograph, Medical Imaging System, Infusion/Syringe Pump, Defibrillator, Home Care and Veterinary products etc. At present, Darppon products have been exported to over 100 countries and regions.
Inheriting the people-oriented principle, Darppon endeavor to creates united, competitive and positive working environment for our teams. Also, we always dedicate to research and develop advanced technology and products and hope to bring the highest satisfaction our customers worldwide.
our service
1. OEM/ODM service :
Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :
Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support: Darppon offers professional engineers for customers on the technical support, and response within 12 hours
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
FAQ
1. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 7-8days after receiving your payment.
2. What about quality assurance?
We offer 1 year warranty period beginning from the time of shipment for medical equipment.
3. What about the price level?
Our prices are competitive compared with those at the same quality level, and we keep striving to provide the best pricing to our customers.
4. What is payment term?
T/T in advance, Western Union, Credit card etc.
5. What transportation way does your company usually use?
By ship, airplane, express etc.
